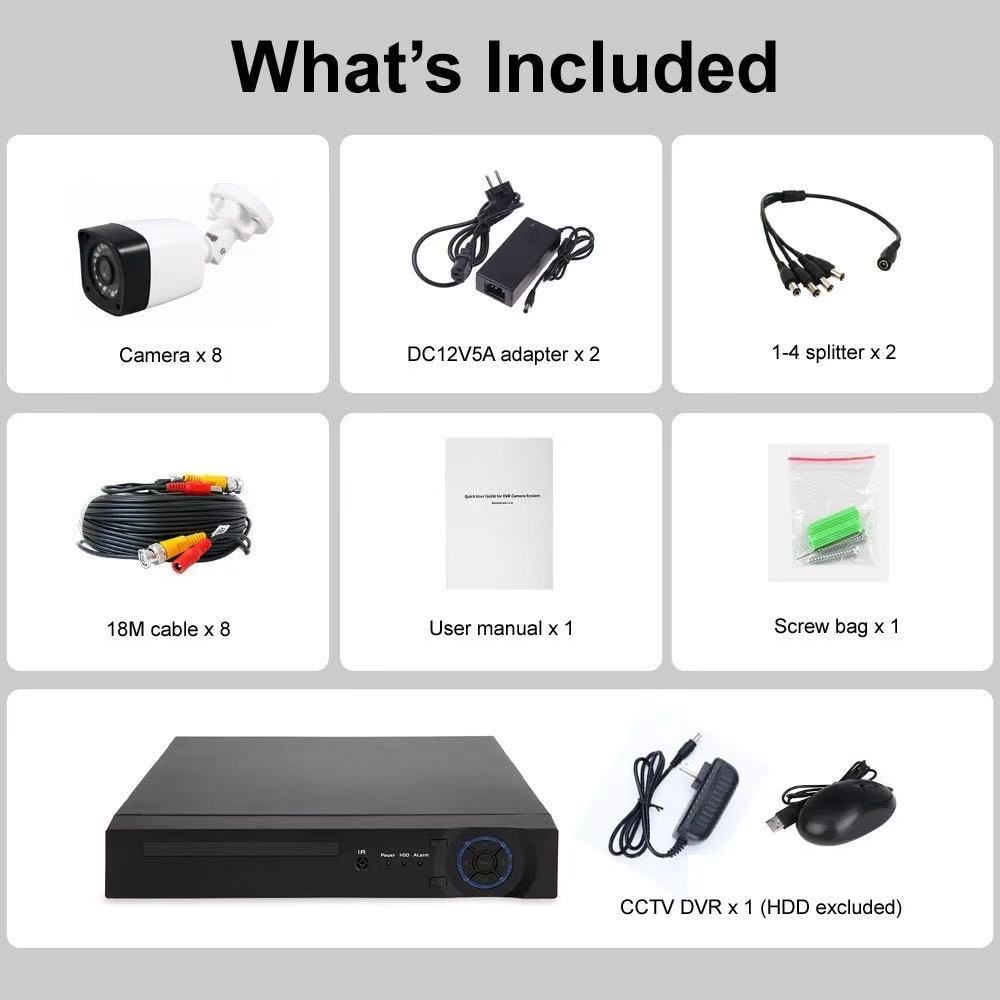

Packing List:

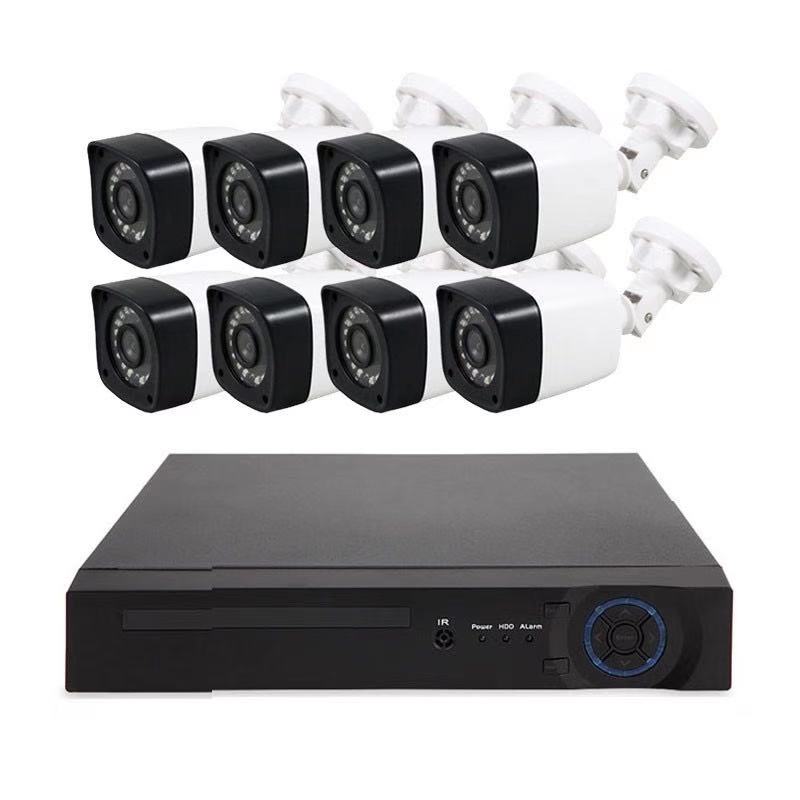

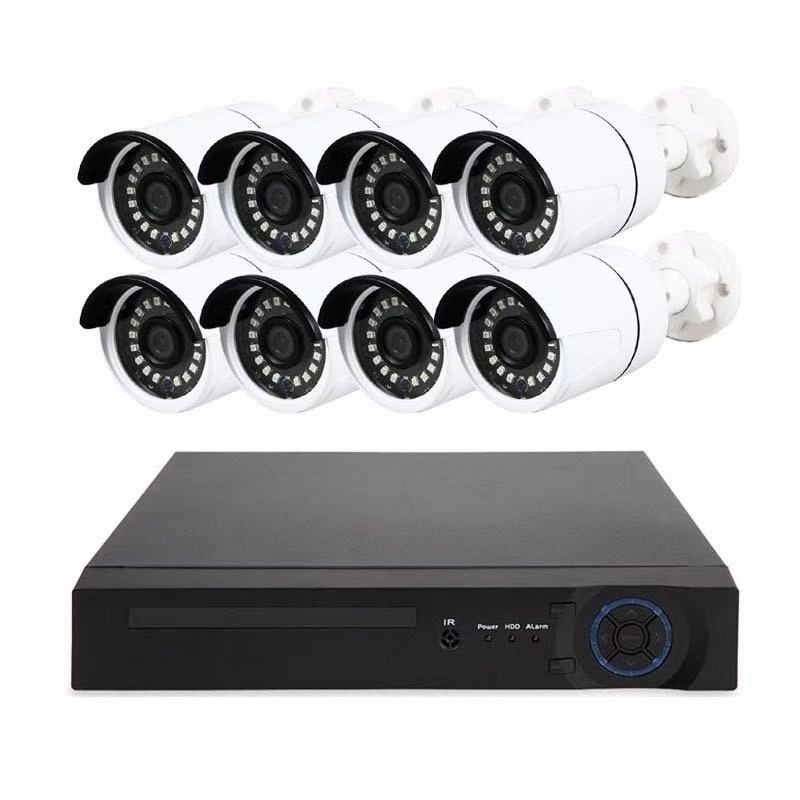

8pcs Bullet AHD camera
8pcs cable 18M (BNC+DC)
2pcs power adapter DC12V5A
2pcs power cable splitter 1-4
1pcs hybrid dvr 8ch
1pcs mouse & 1pcs power adapter for dvr
1pcs SATA cable and screws
1pcs manual
AHD DVR System Features:

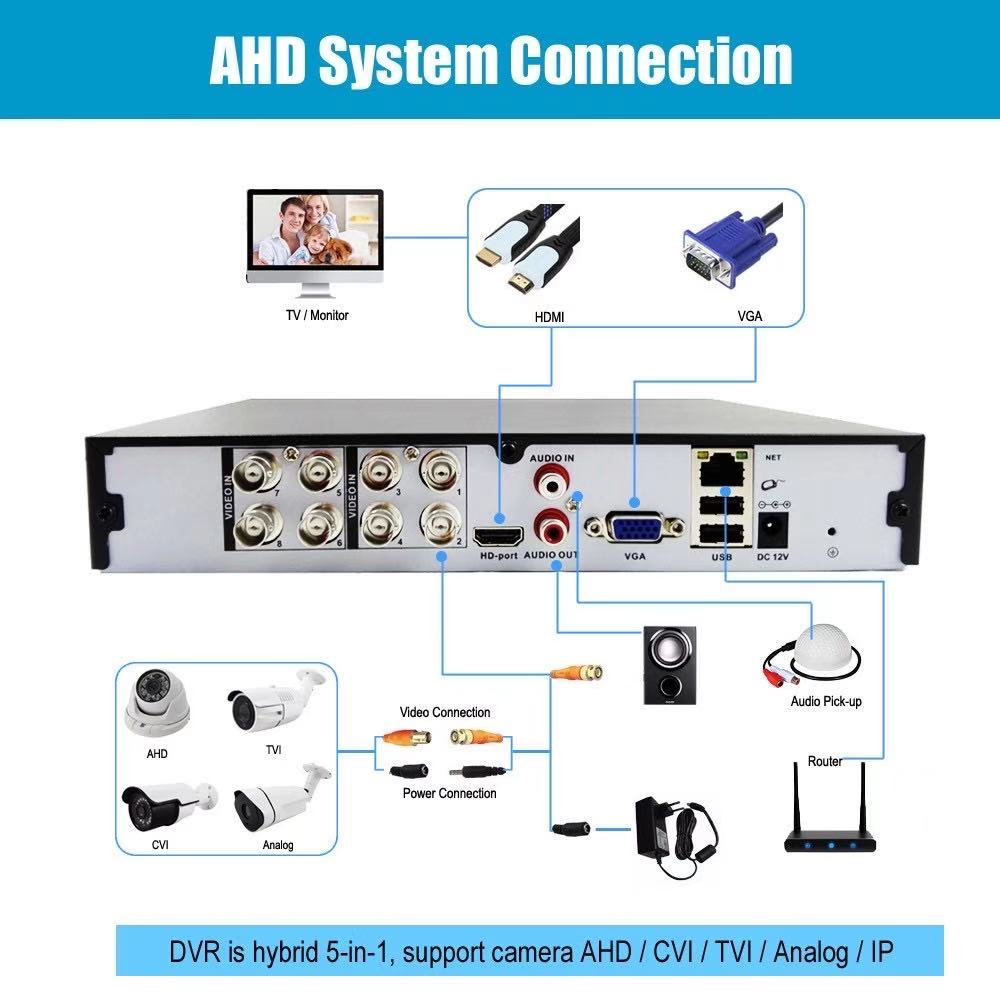

1. DVR hybrid 5-in-1, support AHD / CVI / TVI / Analog / IP video input.
2. DVR Support smart phone view (iPhone Android) via App.
3. Support VGA, TV and HDMI output at the same time.
4. Support motion detection
5. Powerful network service(DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, Email etc. ) Perfect supporting (WEB,Client,SDK), easily achieve interconnection.
6. BNC connecting, it's AHD (Analog High Definition) system, still can use the cable of your old traditional analog system.
Camera Specification:
- Min. Illumination: 0.01Lux/F1.2, B/W:0Lux/F1.0(With IR)
- Electronic Shutter: 1/50(1/60) seconds to 1/10,000 seconds
- Lens: 3.6mm
- IR Led: 18pcs Nano leds
- IR Distance: up to 20M
- IR-CUT: Built-in IR-CUT, day night auto switch
- Synchronization System: Internal
- Video Output: BNC, 1.0Vp-p/75Ohms
- Input Voltage: DC 12V (±10%)
- Power Consumption: <24W
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Operating Humidity: 20 to 80%
- Camera Case Material: Plastic
DVR Specification:
- Operating system: Embedded Linux
- System resource: Simultaneous multi-channel real-time recording, playback, network operation, USB backup
- Operation interface: 16bit real color GUI interface support mouse operation
- Display screen: 1/8
- Video input: AHD: 8*5M / 8*1080P / 8*720P
- Video standard: PAL(625 lines,50fps); NTSC(525 lines,60fps)
- Image encode: H.265
- Motion detection: Support
- Audio compression: G.711A
- Audio: 1/1
- Record mode: manual>alarm>motion detection>timing
- Video search: Time, date, event, channel search
- Video storage: Local HDD ,Network
- Back up mode: Network backup, USB hard disk, USB burner, SATA burner
- Video output: 1ch VGA, 1ch HDMI HD output
- Network interface: 1*RJ45 10M/100M Adaptive Ethernet port
- USB interface: 2*USB2.0 port
- HDD port: 1 SATA port ( each max to 6TB)
- PTZ control: No
- ONVIF: support
- Power supply: 12V/2A
- Power Consumption:<10W(Without HDD)
- Work environment: Temperature:0℃-＋55℃
- Humidity: 10%－90%RH , Atm:86kpa－106kp
- DVR Dimension: L255mm* W215mm* H45mm
- Net Weight: Around 1.1KG
